Nvidia Jetson TX2 AI development kit(945-82771-0000-000)

1 item(s)
OEIK88094211

Contact us for a price

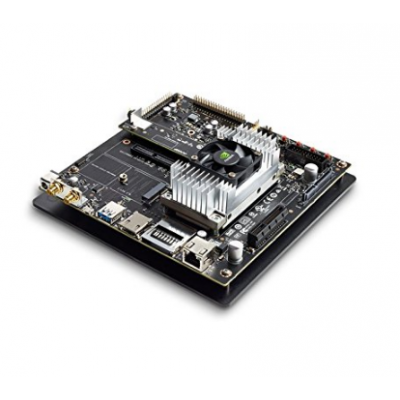

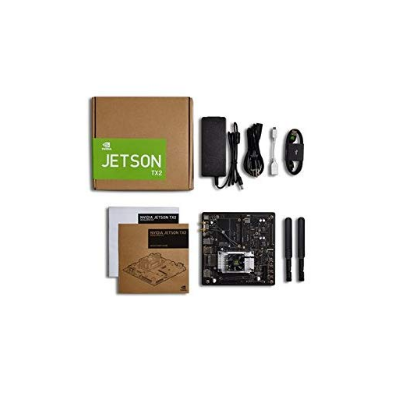

Nvidia Jetson TX2 AI development kit(945-82771-0000-000)

Nvidia Jetson TX2 AI development kit(945-82771-0000-000)

US/CA Version ONLY - Jetson TX2 Application Processor and SOC Development Kit 8GB RAM 32GB eMMC Flash Linux Ubuntu 64-bit v14.04
Screen Size 0.7 inches
Max Screen Resolution 4K pixels
Processor 1.2 GHz Tegra 4.0
RAM LPDDR4
Memory Speed 60 MHz
Hard Drive Flash Memory Solid State
Chipset Brand nvidia
Graphics Card Ram Size 58.3 GB
Brand Name NVIDIA
Series Tegra X1
Item model number 945-82771-0000-000
Item Weight 3.55 pounds
Product Dimensions 6.7 x 6.7 x 2 inches
Item Dimensions L x W x H 6.69 x 6.69 x 1.96 inches
Color Black
Processor Count 4
Computer Memory Type DDR SDRAM
Hard Drive Interface Serial ATA
Hard Drive Rotational Speed 5400 RPM
ASIN B06XPFH939
Shipping Weight 3.65 pounds

What changes for industrial environments does Jetson TX2i have compared to Jetson TX2?

Feature Jetson TX2 Jetson TX2i
Shock 140G, 2ms 140G, 2ms
Vibration 10Hz ~200Hz, 1g & 2g RMS Random: 5g RMS 10 to 500Hz
Sinusoidal: 5g RMS 10 to 500Hz
Temp Range at module TTP -25°C - 80°C -40°C - 85°C
Humidity 85°C / 85% RH, 168 hours -10°C to 65°C / 95% RH, 240 hours
Operating Life 5 Years
(GB at 35C: MTBF=1,747,520 hours
GF at 35C: MTBF=1,066,851 hours)
10 Years
(GB at 45C: 2,505,155 hours Rt=0.9656
GF at 45C: 1,254,624 hours Rt=0.9326)
Misc Env Testing N/A Mixed gas flow; dust settling; free fall drop
TDP 15W 20W


Features

Brand:
Nvidia
Condition:
Brand new
Package Weight (kg):
1
Shipping time (min days):
5
Shipping time (max days):
7
Warranty (Month):
6
