Kstar 20kva UPS 18000w 3:1 phase tower online MP31 20k UDC9320S

5 item(s)
YDC3320s

169,900.00

  • MP31 20k UDC9320S (include 40 pcs x 12v9ah Battery)
    + optional (20kva battery pack)
  • Power range: 20kVA
  • Capacity : 18,000W
  • Work: online,3:1 phase
  • Applications:
  • PF: 0.9
+

Kstar 20KVA UPS(MP31 20k UDC9320S ) 3:1 Phase Tower online
(include 40 pcs x 12v9ah Battery)

- UPTO include battery 60 pcs x 12v9ah battery) : backup time (20 min of pull load)

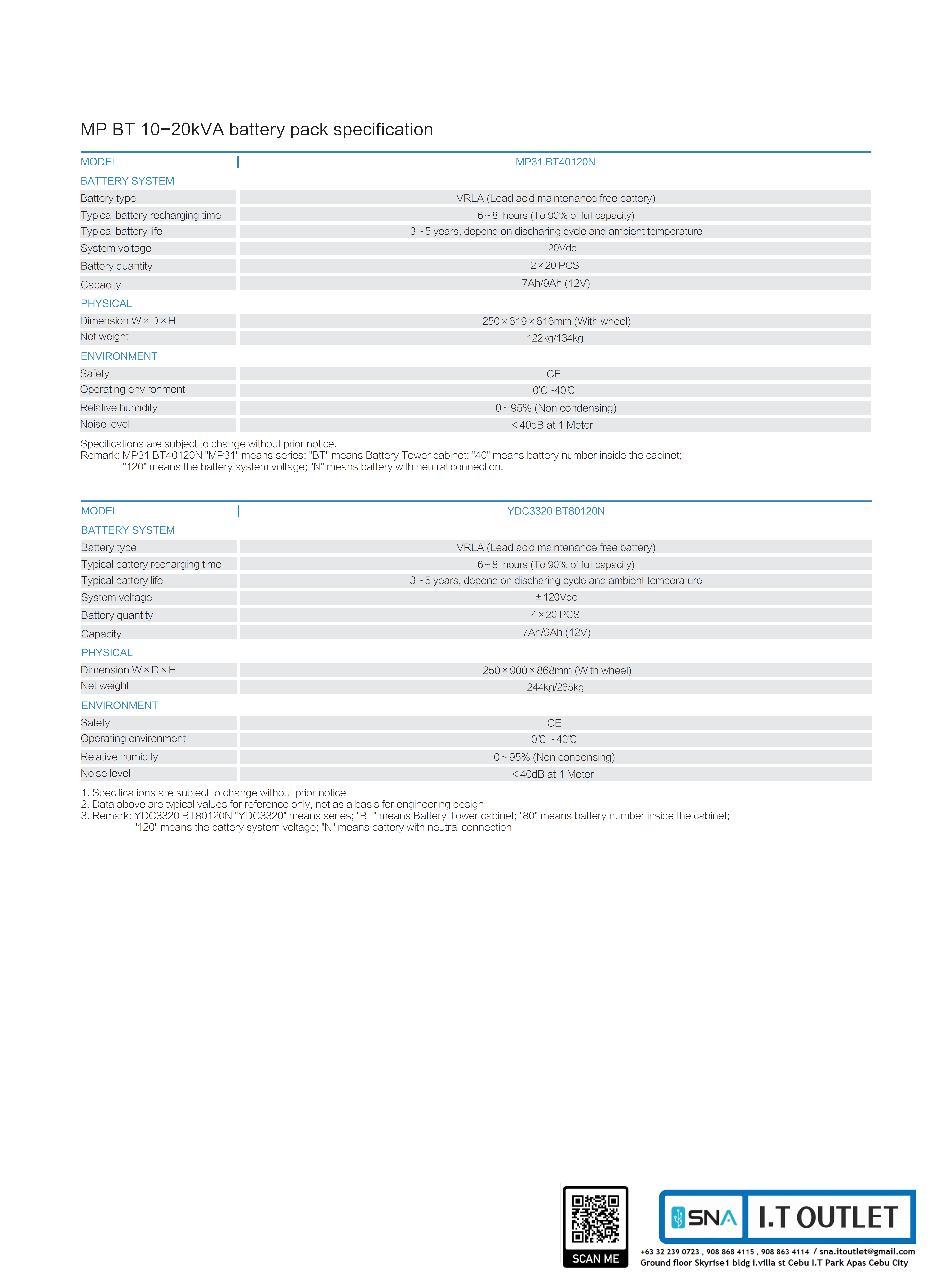

- ADD optional EBP(extra battery pack) : MP II-BT40009 with 40 pcs 12V9AH battery : backup time (10 min of pull load)

  • Backuptime MP31 93020s UPS ( incdlude default battery) + EBP
  • 10min backup time - MP31 93020s UPS (40 pcs 12v9ah)
  • 20min backup time - MP31 93020s UPS (60 pcs 12v9ah)
  • 30min backup time - MP31 93020s UPS (40 pcs 12v9ah) + EBP MP II-BT40009(12v9ah x 40pcs)

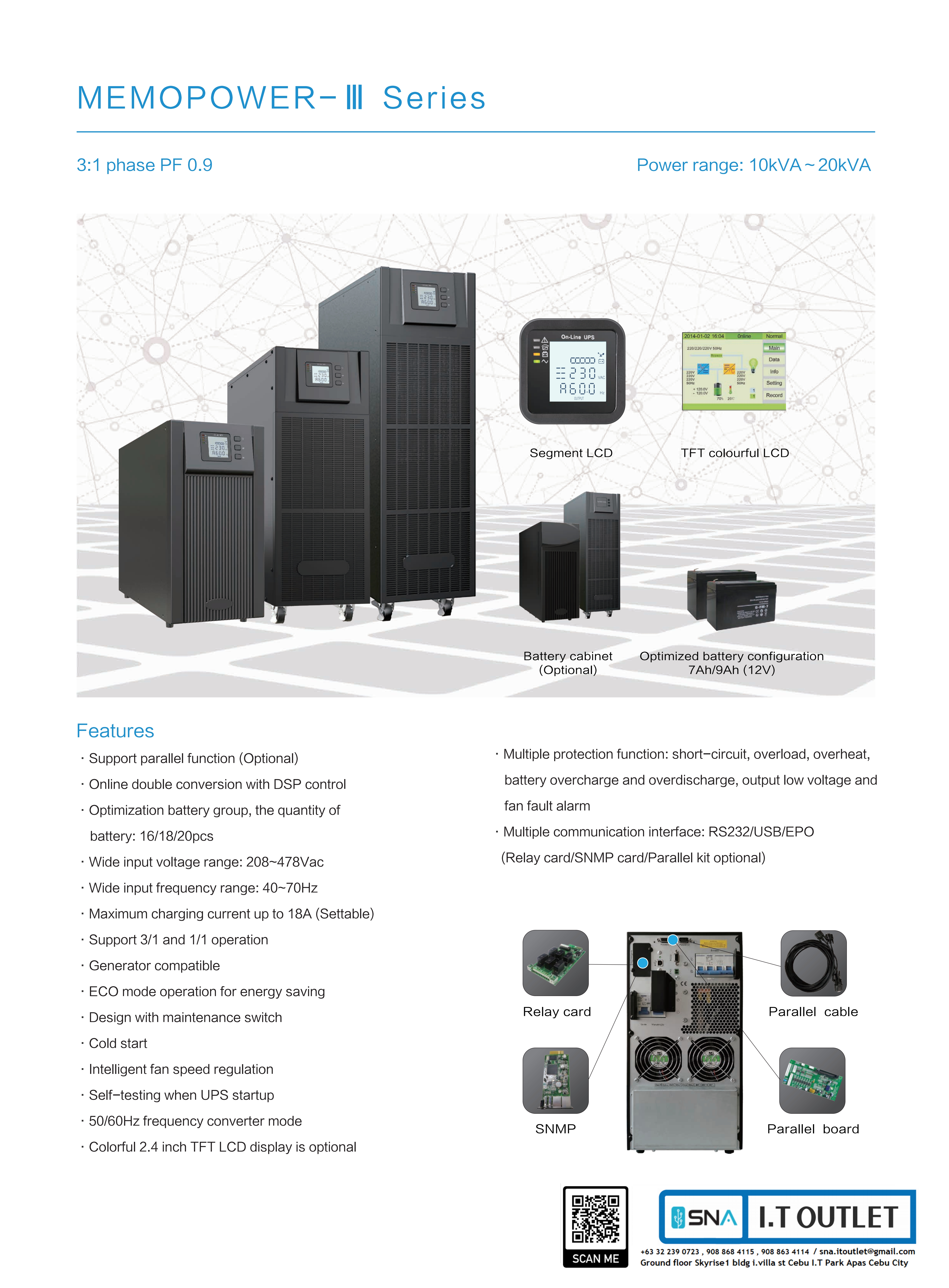

  • SMALL & MEDIUM POWER HIGH FREQUENCY UPS
  • online auto on/off switching
  • Available capacity : 18,000w
  • Input voltage : 380/400/415Vac (3PH+N+PE)
  • Input voltage : 220/230/240Vac (L+N+PE)
  • Operarion voltage Range : 208~478Vac; 120~276Vac / 40~70Hz (50/60Hz Auto-Sensing)
  • Backup time : 5~10min, - USB or serial managed
  • N+X parallel redundancy
  • Online double conversion with DSP control
  • Input current harmonic: <5%
  • Optimization battery group, the quantity of battery: 40/60 pieces (optional)
  • Wide input voltage range: 208~478Vac
  • Wide input frequency range(50Hz: 45~55Hz / 60Hz: 54~66Hz)
  • Support generator input
  • Support economic(ECO) operation mode
  • Self-testing when UPS startup
  • Cold start


.

Features

Brand:
Kstar
Condition:
Brand new
Dimensions (W x H x D):
30 x 70 x 100
Package Weight (kg):
180kg
Shipping time (min days):
3
Shipping time (max days):
45
Warranty (Month):
12
